QUALITY CONTROL

Viso 6.00 is PC measurement software that helps to evaluate splice quality control by means of micro-section analysis and to maintain timely direct interaction with SM Contact engineering staff.

All the measurements are taken according to predetermined industry (VW, PSA, etc.) or customized reference values. Interaction between user and supporting engineers is performed through SM Cloud data storage and is an essential part of Full Process Control (FPC) Solution system.

If connected to the Internet, Viso 6.00 is updated automatically as soon as new updated appears.

This intuitive software guides the operator during the following operations:

1. Operator prepares the sample with a help of laboratory equipment, capture its image and transfer it to Viso.
2. Opening the operating panel of a software, operator chooses the mode: free measurement or Control list correlation.
3. Selecting the free mode, operator chooses the parametres to measure. In the Control list mode the parametres and its reference values are predetermined.
4. Operator measures the parameters by setting the start and end points of each measurement in the working area.
5. Viso 6.00 generates a report (free measurement) or a comparison report (Control list mode).

STANDARD FEATURES
OPTIONS

STANDARD FEATURES

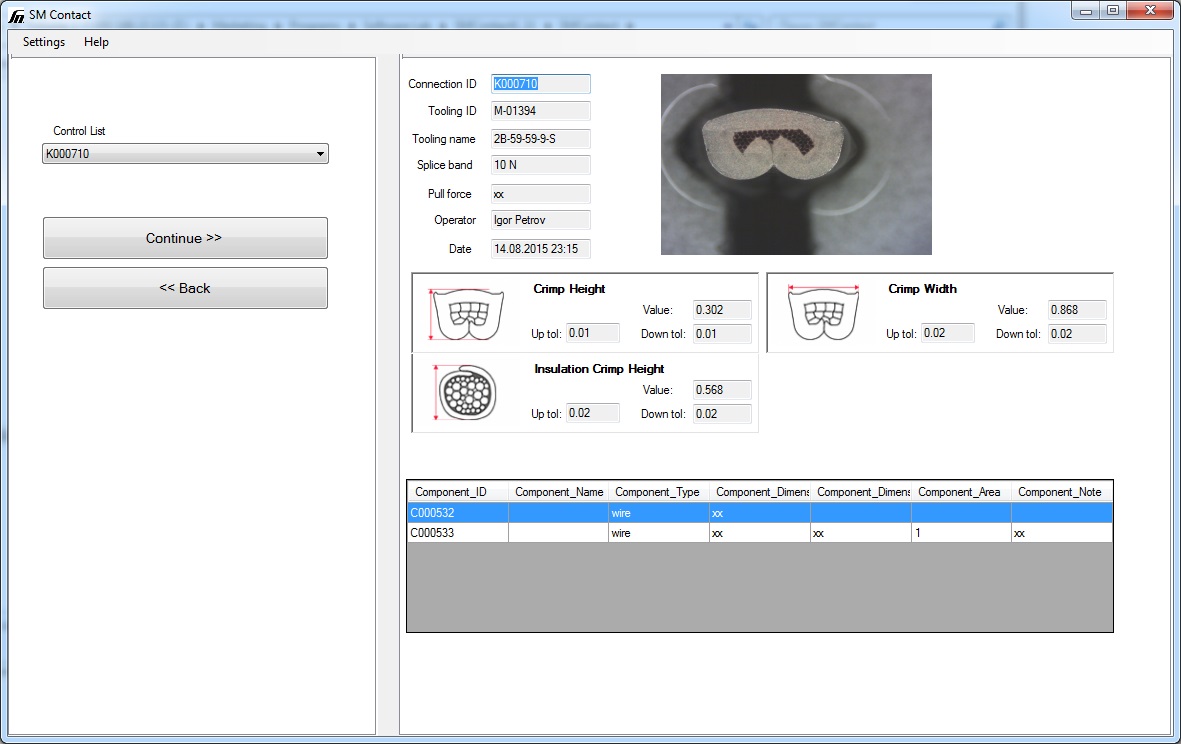

Control list with reference values

Optimal dimensions and its’ tolerances found in Control lists are determined by SM Contact for the corresponding connection on the step of qualification laboratory tests and FEA simulation (cross-view, pull-force, electrical resistance, galvanic corrosion, CPK match, etc.).

If connected to the Internet, Viso 6.00 automatically downloads all the new Control lists corresponding to the certain customer. Relevant documents are identified by the unique license number that is given to each user.
Conformity to individual and industrial standards

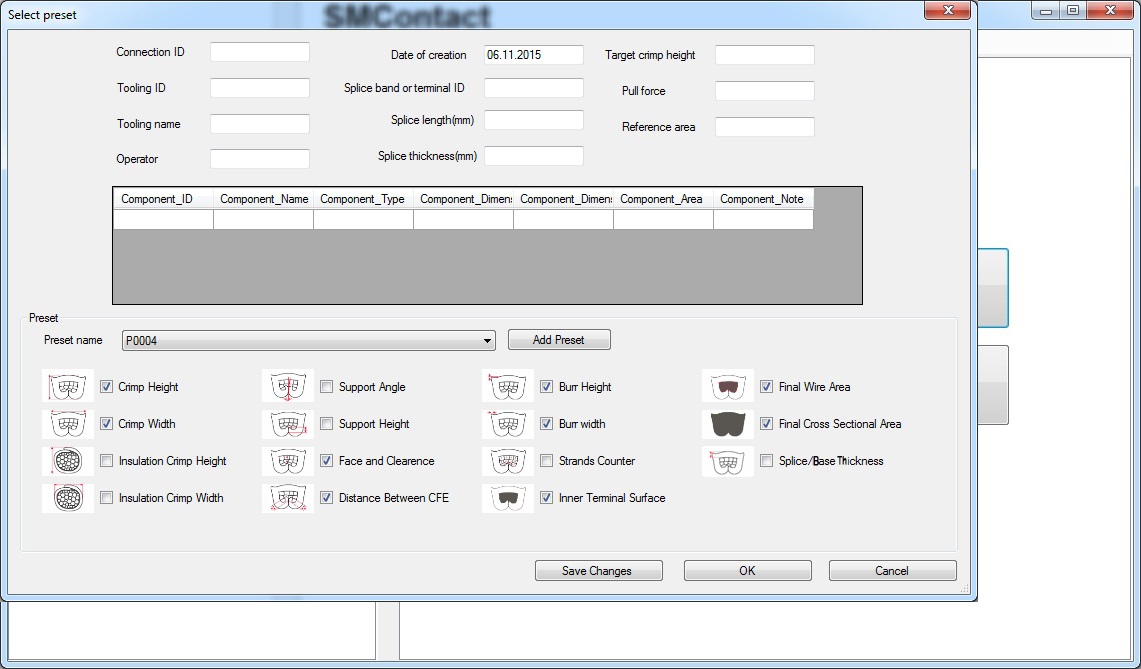

Viso 6.00 has 5 pre-stored sets of parameters (presets) which are to be examined during free measurement. There is one preset provided for all the possible parameters measurement and several more corresponding to the most useful industry standards (VW 60330, USCAR 21, TYCO114-18022-10, PSA 9634115099, Renault 36-05-019, SM Contact Norm).
Automatic measurement of splice dimensions and cross section area

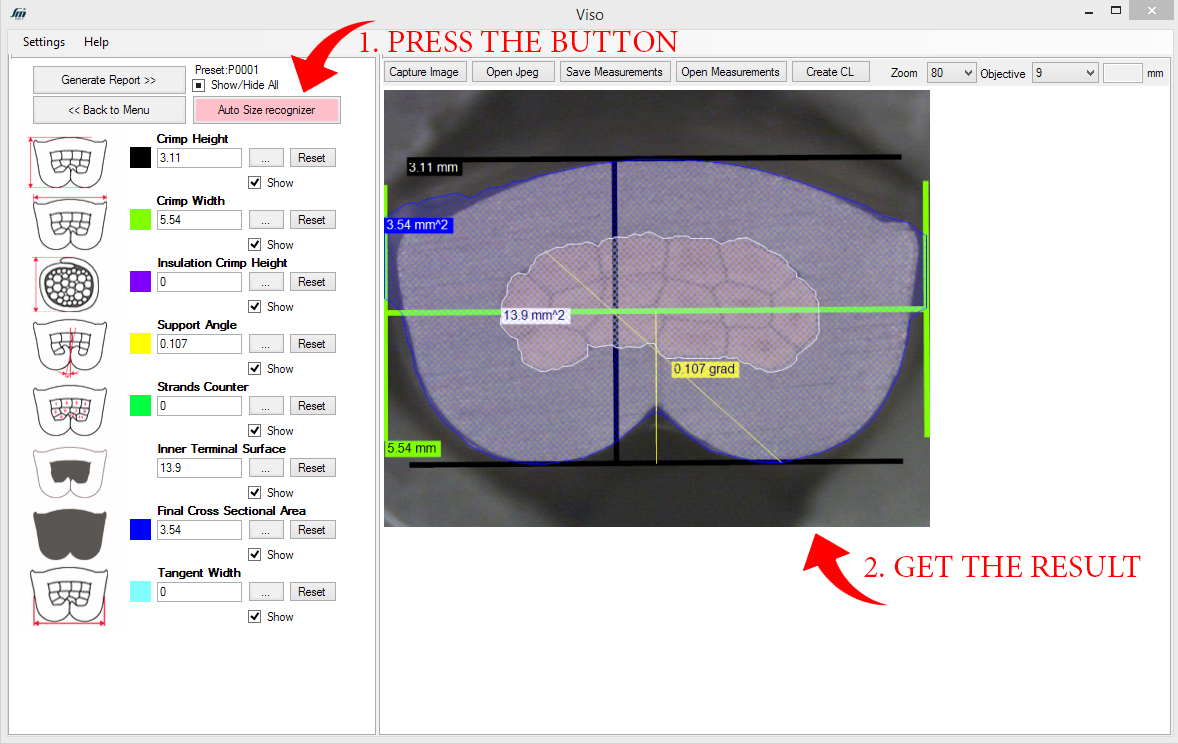

It is possible to launch automatic size recognition of the following 5 parameters: crimp height; crimp width; support angle; inner terminal surface; final cross sectional area.
Simple-to-use program with guided procedure

OPTIONS

Full Process Control (FPC) Solution

If user’s service agreement includes FPC Solution the following quality monitoring and maintenance options are provided along with Viso 6.00 software:

. Initial connection qualification and tooling definition (Control list forming);

. SM Cloud data storage with private customers’ access keeping all connections’ information and its update (including Control lists, manuals and CPK reports);

. Automatic notification of the supporting engineers in case of values deviation;

. Annual re-validation of customer’s connections with updating of the Control list and drawing up recommendations for meeting the quality requirements.
